Home Products Fuse Accessories Fuse Clip Nickel Plated Brass 5AG Fuse Clip FS-700 For 10x38mm Ceramic Fuse

Products

Nickel Plated Brass 5AG Fuse Clip FS-700 For 10x38mm Ceramic Fuse
Nickel Plated Brass 5AG Fuse Clip FS-700 For 10x38mm Ceramic Fuse Nickel Plated Brass 5AG Fuse Clip FS-700 For 10x38mm Ceramic Fuse Nickel Plated Brass 5AG Fuse Clip FS-700 For 10x38mm Ceramic Fuse Nickel Plated Brass 5AG Fuse Clip FS-700 For 10x38mm Ceramic Fuse Nickel Plated Brass 5AG Fuse Clip FS-700 For 10x38mm Ceramic Fuse

Nickel Plated Brass 5AG Fuse Clip FS-700 For 10x38mm Ceramic Fuse

Product ID : FS-700
Product Tags :
Product Attributes :

- Compact design

- Rated voltage 600V

- Rated current 30A

- For 5AG midget fuse

- Customized available

- Nickel plated brass

- Electrical loading

- Easy to install

Product Description

Description Of The 5AG Fuse Clip



Fuse clip made of nickel plated brass and PC pin with ROHS&REACH certificates, ideal option for 5AG fuse ,easy to replace and isolated with other components on PCB board.



Specification Of The 5AG Fuse Clip



Name  Fuse Clip
For Fuse 5AG 10x38mm midget fuse
Voltage rating 600V
Current rating 30A
Material Brass
Fuse holder type Clip
Color Sliver
Other size 3.6x10/5x20/6x30......

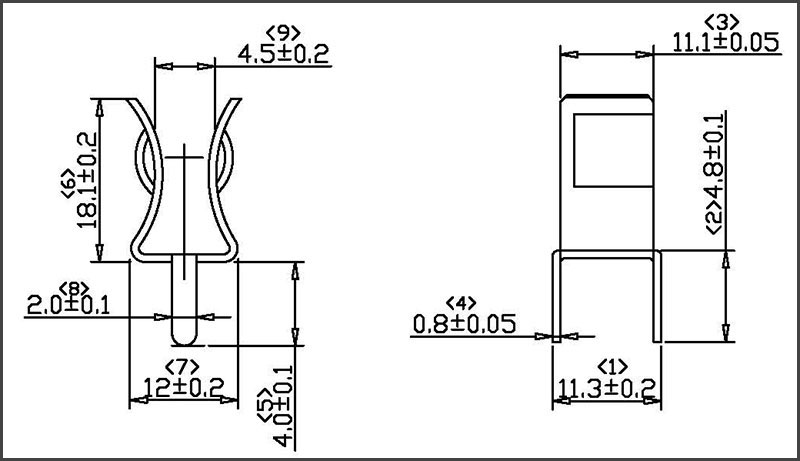

Dimension Of The 5AG Fuse Clip
