- Fast Acting, with improved surge withstand performance
- Small size, 1206 SMD
- Current rating from 250mA to 8A, fuse marked with ampere code
- Wide operating temperature range from -55℃ to 125℃

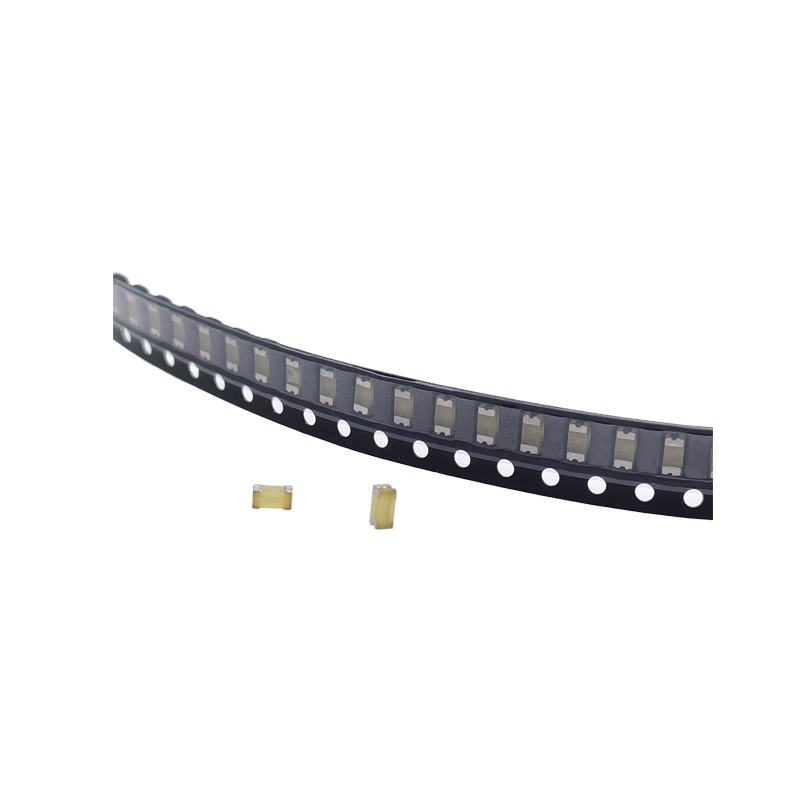

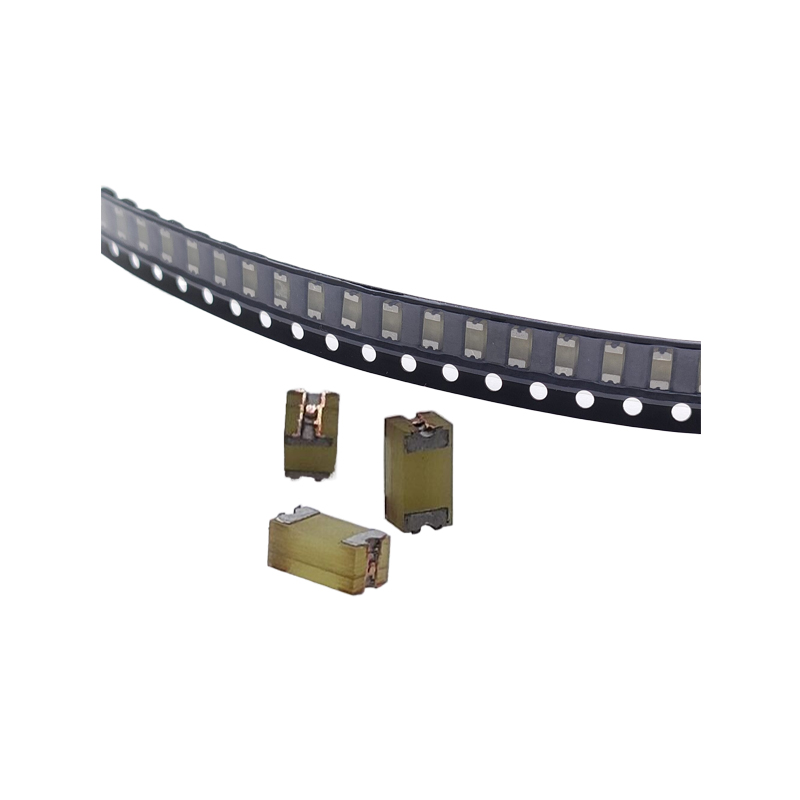

- Tape and Reel for automatic SMD placement
- Compatible with 260℃ IR Pb-free and wave soldering process
- Full compliance with EU Directive 2011/65/EU and amending directive 2015/863(MSL = 1)
- Halogen Free and Lead Free

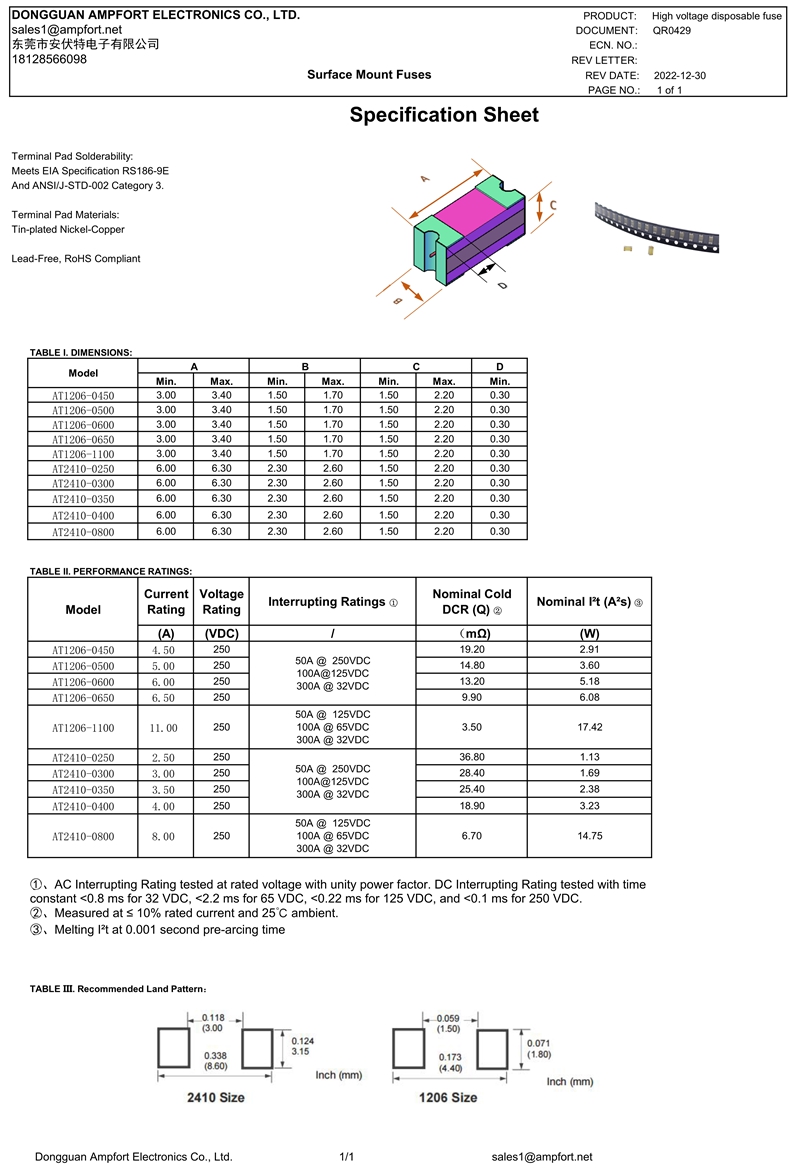

| Model | Current Rating |
Voltage Rating |
Interrupting Ratings ① | Nominal Cold DCR (Q) ② |
Nominal I²t (A²s) ③ |
| (A) | (VDC) | / | （mΩ) | (W) | |
| AT1206-0450 | 4.5 | 250 | 50A @ 250VDC 100A@125VDC 300A @ 32VDC |
19.20 | 2.91 |
| AT1206-0500 | 5 | 250 | 14.80 | 3.60 | |
| AT1206-0600 | 6 | 250 | 13.20 | 5.18 | |
| AT1206-0650 | 11 | 250 | 9.90 | 6.08 | |
| AT1206-1100 | 2.5 | 250 | 50A @ 125VDC 100A @ 65VDC 300A @ 32VDC |
3.50 | 17.42 |
| AT2410-0250 | 3 | 250 | 50A @ 250VDC 100A@125VDC 300A @ 32VDC |
36.80 | 1.13 |
| AT2410-0300 | 3 | 250 | 28.40 | 1.69 | |
| AT2410-0350 | 3.5 | 250 | 25.40 | 2.38 | |
| AT2410-0400 | 4 | 250 | 18.90 | 3.23 | |
| AT2410-0800 | 8 | 250 | 50A @ 125VDC 100A @ 65VDC 300A @ 32VDC |
6.70 | 14.75 |
